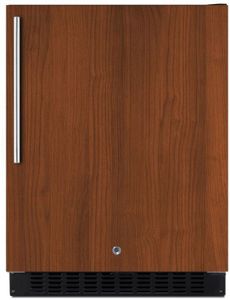

Summit® 3.1 Cu. Ft. Panel Ready Under The Counter Refrigerator


Model #:

ASDS2413IF

Model #: ASDS2413IF
1190002
Summit
$2,035.00
2Yr War $39

At a Glance

Product Dimensions 32"h x 23.38"w x 17.75"d

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. Model ASDS2413IF is a 24" wide all-refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. . *CUSTOM PANEL & HANDLE SOLD SEPARATELY*Read More

$2,035.00

What We Offer

Protect Your Purchase

View Options

None Selected

1-2 Week Lead Time

Get to know this product.

Product Overview

Product Overview

The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. The door features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 28 3/16" H x 23 5/16" W; maximum weight: 10 lbs.). Customers provide their own handle to complete the look.

Inside, the ASDS2413IF features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes cantilevered shelving in chrome for flexible storage. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

The ASDS2413IF refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, wine cellars, and more.

Less than 18" deep

Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

Adjustable height

Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Stainless steel interior

Walls and floor are constructed from stainless steel for added strength and easy cleanup

Digital thermostat

Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

Open drawer alarm

Audible alarm will sound if the door is left open longer than one minute

Panel-ready door

Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 23 5/16" W x 28 3/16" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles

Frost-free

No-frost operation for minimal user maintenance

Useful Documents
Specifications

General Specs

Product Weight (lbs.)89
Width (in.)23.38
Depth (in.)17.75
Height (in.)32
Total Capacity (cu. ft.)3.1
ColorCustom
Depth w/Door Open 90 Degrees (in.)40
Door ColorCustom
Handle ColorStainless Steel
Manufacturer Warranty1 Year Parts & Labor
Fingerprint Resistant FinishNo
Door Panel TypePanel
Appliance Fit Width (in.)23
Ice MakerNo
Door Swing OptionReversible Hinge
Depth TypeStandard Depth
Color Finish NameCustom
Ice/Water DispenserNo
Number of Doors1
ENERGY STAR CertifiedNo
Commercial Use ApprovedNo
Custom Panel ReadyYes
Installation TypeBuilt-In or Freestanding
ADA CompliantYes
Wifi CapableNo
Smart CompatibleNo
Voltage115
Frequency60
Amp1
Type of RefrigeratorUnder The Counter Refrigerator
Ice Maker TypeNone
Defrost TypeFrost Free
Refrigeration General FeaturesDoor Alarm, Reversible Door Hinge
Overall Height (in.)32
Garage ReadyNo
WarningProposition 65 Warning for California Residents
